Vibration sensor with CANopen interface for mobile machines
September 2026Maintenance, Test & Measurement, Calibration
Keeping an eye on the mobile machine status

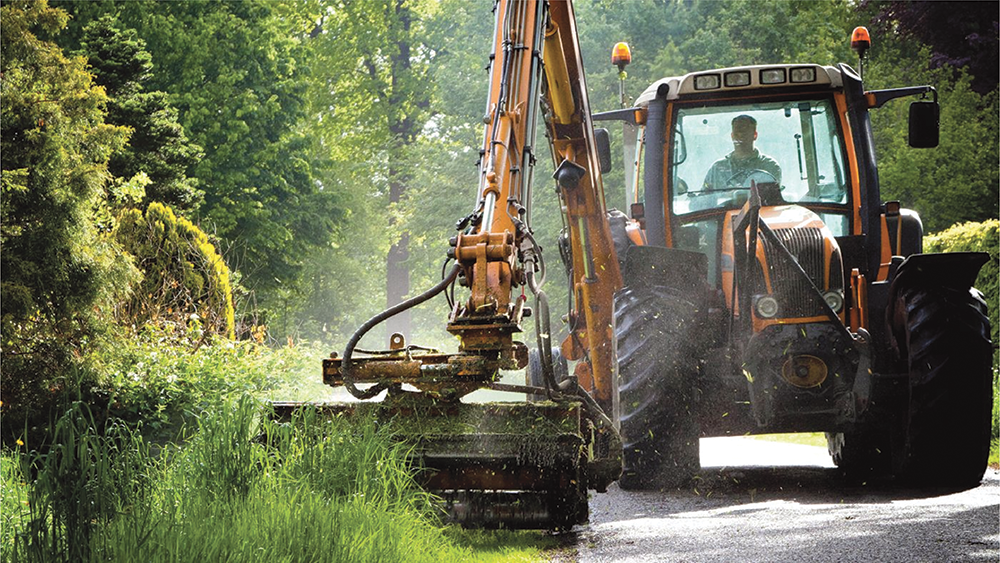

Whether it is an imbalance in the rotating blades of a mowing machine, or cavitation or foreign objects in mobile drainage pumps, these issues impact critical components. If they go unnoticed, they can cause costly damage and extended downtime.
Convenient and informative

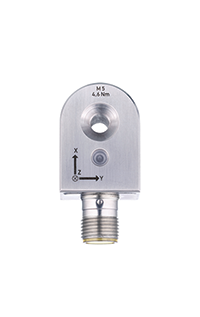

The VMB301 3-axis condition monitoring sensor from ifm is designed for use in mobile applications, and can be seamlessly integrated into the vehicle network and ifm’s system portfolio, thanks to its CANopen interface. The integrated 120 ohm bus resistor can optionally be activated or deactivated via CANopen. This reduces costs and increases flexibility.
Comprehensive condition monitoring
Once integrated, the VMB301 transmits a large number of proven condition indicators in real time: Fatigue (v-RMS), mechanical friction (a-RMS), shocks (a-Peak), mechanical stresses (d-Peak2Peak), statistical bearing wear (crest) and surface temperature. The innovative BearingScout for bearing analysis and dynamic unbalance measurement completes the VMB301’s range of features as a standalone condition monitoring solution for mobile machines.
For remote monitoring, the condition and machine data can be transmitted via radio modem to mobile IoT, ifm’s IIoT platform for mobile machines.
