The EGIL has landed
October 2011
Electrical Power & Protection

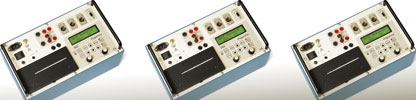

Featuring compact construction and straightforward operation, Megger’s latest EGIL circuit breaker analyser is suitable for testing timing and travel on all breakers that have a single interrupter per phase. When used in conjunction with the SDRM option and the new SDRM201 accessory, the instrument can also be used to carry out static and dynamic resistance measurements, including the arcing contact length in SF6 switchgear.
Although the EGIL is available at a very attractive price, no compromises have been made on its versatility or performance. It is an ideal choice for operators of small power plants and for the maintenance of simple circuit breakers by power distribution utilities.
To aid ease and speed of use, the EGIL has a built-in sequencer that automatically runs the selected breaker operating sequence while making the appropriate measurements and recording the results. In addition, menu-driven procedures invoke sensible default settings, thereby eliminating the need for time consuming pre-setting. Megger’s EGIL test set offers three timing channels for the circuit breaker main contacts. Pre-insertion resistor contacts and main contacts can be timed on the same channel, with the results recorded graphically and numerically on the printed integral. Results are also shown numerically on the instrument’s large, easy to read display.
Two additional galvanically isolated timing channels are provided for auxiliary contacts. An analogue channel is also available as an option. While primarily intended for monitoring contact motion, this channel has many other applications.
For EGIL test sets that have the SDRM option installed, the SDRM201 module extends the facilities to allow accurate resistance measurements to be made on circuit breaker contacts and other low resistance devices. When used with the test leads provided, the SDRM201 is capable of supplying an instantaneous current of 200 A DC, falling to 140 A after one second. Multiple tests can be run with only a short waiting time in between. Used in conjunction with the SDRM201, the EGIL test set supports dynamic resistance measurement from 0 to 32 m, and static resistance measurement from 0 to 2 m. The inaccuracy of static resistance measurements is 2% ±2 μ or better.
To complement the latest models, Megger has introduced a new version of its CABA Win computer-aided breaker analysis software – R03A. Designed to run under Microsoft Windows on a standard PC, this adds full support for static and dynamic resistance measurements; new test plans for applications where the EGIL is used with the SDRM201; and 19 new timing parameters for multiple operations.
For more information contact Stuart Ashton, Surgetek, +27 (0)11 792 1303, [email protected], www.surgetek.co.za
