Optimised fuel blending

May 2019 Analytical Instrumentation & Environmental Monitoring

With the increase in emission regulatory norms worldwide, and the market moving from Euro 2 to 3, 4 and 5, the criticality of the refining process has increased and the risk of producing an out of specification product has increased.

This risk has led the refiners to give more than the norms specify, resulting in a giveaway on quality and profit. The use of near infrared (NIR) technology has helped refiners get real-time data to ensure product quality and reduce the risk of producing an off-spec products.

Why is it important to use NIR?

Final product blending represents perhaps the most quality-critical aspect of refinery operation. Tight product quality characteristics are defined, and must be met for product release. If these criteria are to be met economically, then rapid and accurate online product property measurement is necessary.

The measured product qualities are then available in real time for feeding to an online blending optimiser, thus ensuring the most economic blending operation to achieve blend targets.

Conventionally, this has been done with a large variety of analysers to monitor blend properties and octane. These analysers are extremely expensive, in terms of both capital and maintenance.

Typically, a conventional physical property analyser is slow to give results, however there are no online analysers for RON/MON or Cetane index measurement. A typical refiner’s practice will be to collect samples every eight hours from three different heights in the storage tank. These are sent to the laboratory for conventional analysis. This takes another six to seven hours for laboratory testing, which means the refiner is without data for about fifteen hours. What if a product is then reported off-spec? The refiner will have to re-blend the entire tank, resulting in lost productivity and profit.

How does NIR technology help?

NIR is typically designated to measure certain physical properties like RON, MON, RVP, distillation curves E70, E100, E150, E180,FBP, D10, D50 and D90, oxygenates, benzene, aromatics and olefins.

By accurately measuring final product qualities in real time, these analysers allow feeding any online advanced blend control blend optimiser with the required product qualities to minimise product re-blends and quality giveaway, and allows the use of lower cost feedstocks, while still meeting final product quality targets. Accurate measurement of blending component qualities as they arrive at the blend header also allows the optimiser to determine the best achievable blend order.

The result of a sample analysis takes at most two minutes, so if anything is off-spec the refiner can take immediate corrective action, reducing the risk of re-blend to zero.

How does it work?

NIR works on the principle of IR spectroscopy i.e. when an infrared light is made to pass through a hydrocarbon the sample absorbs some and the remaining light is passed to the detector, which creates a spectrum.

The importance of a localised database

Database models are available for several key refinery streams and properties. These are built from data collected from several refineries. They may not provide accurate predictions due to differences in crude sources, processing steps and blending targets, however, they give usable results in the preliminary stages. Now, since each refinery has its own crude supply and operational parameters, it is important to introduce data from the local refinery to increase the accuracy of the system.

To make a model, samples should be collected from the process, for each of the sample the spectra (spectrum) should be generated on a Lab FT-NIR and the corresponding properties of each of these samples should be measured using conventional lab analysers. Now each samples spectrum and its corresponding properties measured on lab FTNIR and conventional lab analysers respectively can be used as a data point. A large number of such data points are required to make a local database.

The number of samples required to build a database depends on the variation for each of the properties. The model database should cover the entire range of variation expected in the process. These variations include the crude changes, seasonal variations, and also day and night variations.

However, in case of variations not being captured as it is difficult to change or alter the running process, it may be decided that the laboratory prepare synthetic samples by mixing various feed components in different ratios to create a database covering the entire range.

The ASTM accuracy: related to the number of samples taken to build the database, should be such that it has a 95% confidence level.

The quality giveaway: NIR technology is used to prevent the quality giveaway, which results in large savings on costly feed components. Thus for the example of RON, where the minimum limit may be 91 for regular gasoline, and the customer may decide on an accuracy of 0,5 RON, the samples in the database should be good enough to show 95% confidence level for the desired accuracy.

With all this in view, it is very difficult to determine the exact number of samples required to have a good enough database. The bigger and varied the database, the better, will be the prediction. However, with bigger datasets the work required by laboratory personnel on conventional analysers also increases.

What properties can be measured using NIR? What is the repeatability and accuracy?

This is an important aspect of maintaining the reliability and credibility of an installed process FTIR analyser, and is of particular significance for critical optimisation and quality giveaway applications. The discipline of monitoring the online analyser performance versus the site laboratory reference allows for rapid detection and adjustment in case of divergence. Medium-term drift and offset of the laboratory reference needs to be compensated, and calibration modelling effects caused by changes in the blend order or blending component availability need to addressed.

Yokogawa application engineering makes NR800 FT-NIR hardware come alive and work successfully.

Improving the refining margin with online analysis and optimisation

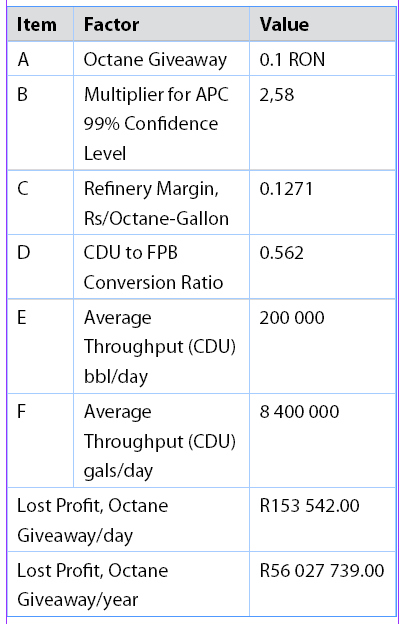

The table shows the results of cost of octane giveaway, per year 0,1 RON (pump octane) per 200 000 bbl/day CDU capacity.

The ROI for payback based only on RON is 2-3 months.

Final product blending – summary

Yokogawa’s NR800 FT-NIR is technology offers an excellent price-performance-value-risk trade-off for online final product blend optimisation. As an optically-based technology, it allows flexibility in terms of multi-stream, multi-property applications, since it is compatible with both local, fully extractive sampling, as well as remote, multi-cell extractive fibre-optic based analyser systems.

It offers multi-property analysis with rapid cycle times well-tuned to the requirements of an advanced blend control optimiser. It is also well established, with hundreds of installations globally providing examples of successful implementation.

Historically, the limitation to any spectroscopic measurement for online final blend product control has been the difficulty in developing, and more particularly maintaining, robust and stable calibration models. This has been mitigated by recent developments including well-controlled analyser to analyser variability, allowing easy maintenance and transferability of developed calibrations, and the use of globally applicable product databases to speed up calibration development.

Fuel blending optimisation is achieved through fuel analysis, which requires refiners to take control of the situation by continuously updating their inferential methods in an intelligent manner, based on experience, engineering expertise and judgment.

For more information contact Yuvisti Ramgulam, Yokogawa South Africa, +27 11 831 6300, yuvisti.ramgulam@za.yokogawa.com, www.yokogawa.com/za
