VEGA has introduced Vegapuls 64, its first radar level sensor for liquids that measures at a frequency of 80 GHz. This feature allows considerably better focusing of the radar beam, which makes measurement easier and more reliable, even under difficult conditions such as tanks fitted with heating coils, baffles or agitators.
Until now, a radar sensor with a transmission frequency of 26 GHz and an 80 mm-diameter antenna had a beam angle of approximately 10°. With the same size of antenna, the Vegapuls 64 has a beam angle of only 3°. This allows the sensor to be used even in vessels with internal installations or heavy build up on the walls, as its more focused beam simply avoids these obstacles.
The larger the dynamic range of a radar sensor, the higher the measurement certainty and the wider the range of applications that the sensor can be used for. With the very wide dynamic range Vegapuls 64, this means that media with very poor reflective properties, i.e. a low dielectric constant, can now be measured with more certainty. Even foam, turbulent product surfaces, condensation or build up on the antenna are no problem, since the instrument measures more reliably due to its greater measurement certainty. It has an accuracy of ±2 mm and a measuring range of 30 m.

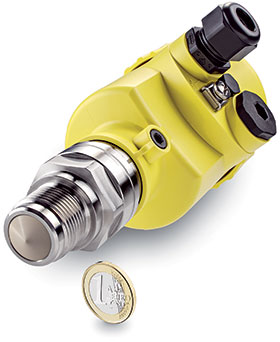

The new instrument is not only ideal for use in the chemical industry, but also in the pharmaceutical and food industries, because of its hygienic materials and design. The relevant approvals for this sector, such as 3A and EHDEG are available. Thanks to its small antenna – the diameter of the smallest version is no larger than a €1 coin – it results in very compact process fittings, which means the sensor can offer an interesting alternative for confined spaces in small vessels. In addition to applications in mainstream manufacturing and processing industries, the sensors open up application possibilities in pilot plants and even laboratories, which, for space reasons, had to do without radar level measurement technology until now.
