Automation specialist Hambi Maschinenbau, part of Terhoeven KG, has developed a world-first system that automates the cutting, handling and stacking of heavy reinforcing steel mesh, a task that previously required up to six human operators. By integrating Mitsubishi Electric’s drive and control technologies connected via CC-Link IE TSN, Hambi has achieved millimetre-level precision and seamless synchronisation across motion, safety and vision systems in a single, unified network.
Tackling a demanding manual process
In the production of reinforcing steel mesh, long lengths of wire are welded into large mats, which must then be cut to size and stacked for transport. This was a labour-intensive process involving multiple workers to lift, align, cut and stack the heavy meshes. It was also considered a difficult task to automate, as weight and flexibility of the mats means that even small deviations in alignment can cause major issues.
However, Van Merksteijn International, a leading steel processor, was determined to overcome these challenges. It reached out to Hambi to develop an automated solution that could detect and compensate for any alignment variations in real time.

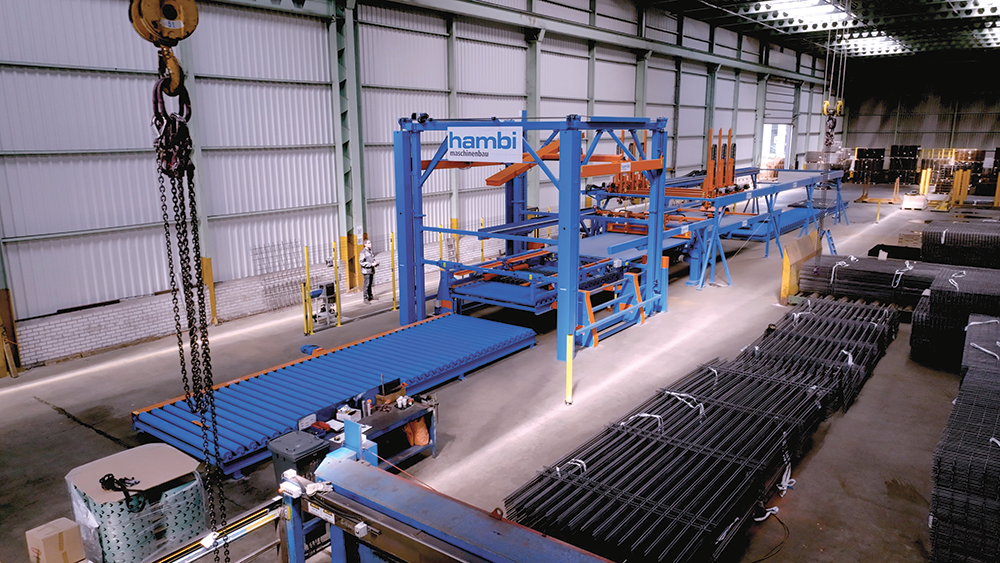

The result was the automatic cutting system, a six-metre high, 40-metre long machine that automates every stage of the process, from lifting the top mat in a stack to cutting and turning sections for compact stacking.
Precision through synchronisation
The system uses six grippers, each capable of independent three-axis movement. As the mesh bends under its own weight during lifting, the grippers must dynamically adjust their positions to maintain even tension and prevent deformation.

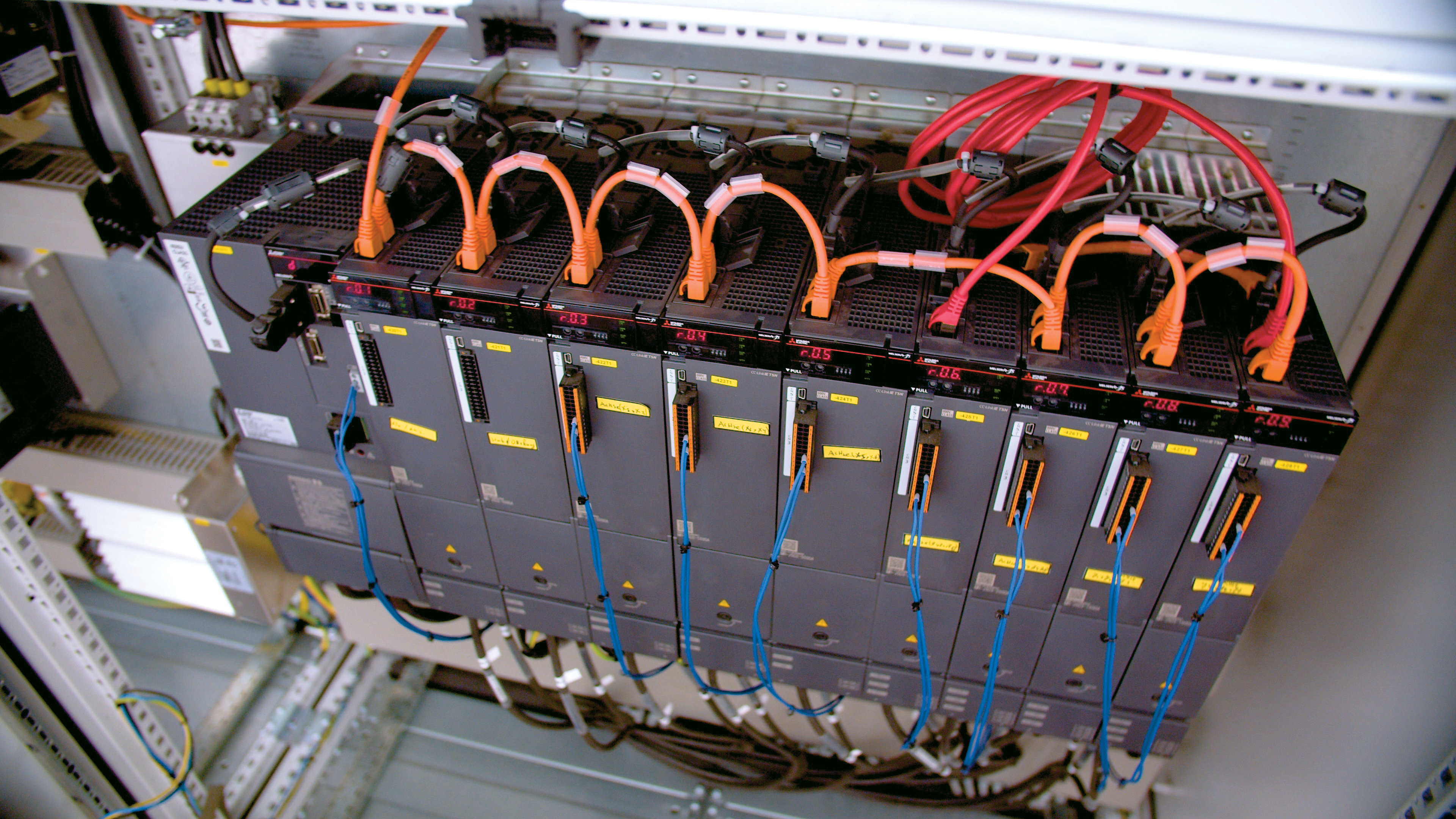

In total, 18 servo drives coordinate this movement with additional drives handling transportation, turning and stacking. Synchronisation between these drives, as well as with the image processing system and safety controls, is critical to ensure stability and precision.
That’s why Hambi decided to link every part of the system including servo drives, safety PLCs, frequency inverters and controllers via CC-Link IE TSN. The high-speed, deterministic communication provided by the open Ethernet standard allowed the team to achieve millimetre-level precision when gripping and positioning the steel mesh, even as it naturally bends and shifts during lifting.
The technology’s gigabit bandwidth also allows all system components to share a single unified network. “Communication via CC-Link IE TSN is particularly important,” explains Marc Orgassa, managing director of Orgassa, Hambi’s long-term automation partner. “It allows us to ensure that the various system components and controllers are synchronised with the drives. This is an important prerequisite as image processing naturally requires the exact position of the grippers.”
A world-first in mesh handling
Following two years of development, the ASA system was commissioned at Van Merksteijn’s site. The solution achieves the precision, reliability and productivity needed for large-scale reinforcing steel production. “It’s inspiring to see machine builders like Hambi using CC-Link IE TSN to solve such complex motion control challenges,” says John Browett, general manager of the CC-Link Partner Association. “The ability to combine different tasks on the high-speed, open network demonstrates how this technology helps companies push automation performance further while keeping system design simple.”
