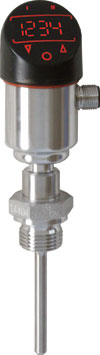

Labom recently launched its compact multifunction temperature transmitter and switch, MiniTherm GS2700. The probe operates on a resistance thermometer principle, offering IP67 protection in a small footprint for minimum mounting space. Probe lengths can be ordered from 15 to 250 mm, with electrical connection made by the on-board
M12-socket termination for quick and easy installation and removal. The transmitter is equipped with a 4-digit LED display that can be rotated through 300°.
The 4-20 mA process signal transmits the temperature range of -50 to +200°C to a control panel via the sealed M12-connector. Additional PNP or NPN switching outputs offer further versatility to the user. The GS2700-probes are also available with a USB-interface and Comline.S programming kit and hygienic versions are available for the food and pharmaceutical industries.
