Omniflex has many temperature monitoring solutions be they one point, 16 points or 600 points or more with high-end specifications, at the same time providing cost-effective solutions.
The iron and steel industry has many critical temperature monitoring applications where the potential to cause or inflict tremendous loss if not monitored and controlled. Compatibility of the front-end temperature measuring system with a variety of supervisory systems is important.

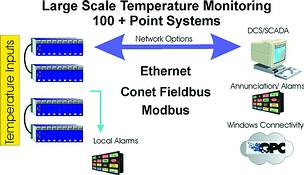

Omniflex offers a high-density temperature monitoring system catering for hundreds of temperatures at once using Maxiflex. No multiplexing and no rotary switches. Temperature inputs may be any 3-wire RTD or thermocouples and are configurable for an RTD or thermocouple type. Cold junction compensation and linearisation are all standard features.
Alarms and alarm annunciation
Each temperature input has four soft alarm setpoints allocated to it. Setpoints are configurable via the diagnostic/configuration tools or via scada or DCS. Setpoints can be mapped to physical outputs to provide alarm and trip functionality or simply read from the scada.
Program-less environment
Maxiflex provides a program-less environment for data acquisition. The system is simply configured using Windows-based tools for the temperature input type and setpoints if required. No application programs are required, the temperature inputs are scanned automatically and are made available to scada or DCS via a data interchange table in the Maxiflex CPU. Temperature can be represented in degrees Celsius or Fahrenheit selected by the user.
Local area network connections and supervisory systems
Networking on existing twisted pair cabling in the plant makes for easy retrofitting to difficult areas of a plant. Multidropping up to 126 devices along a single twisted pair cable will provide the capacity a total 2016 temperature channels on a single twisted pair cable. Ethernet gateways to supervisory systems are available and OPC servers allow all compatible scada packages to acquire the information from Maxiflex field devices. Supervisory systems can then use the data for pro-active plant management.
Cost-effective solutions and benefits
Maxiflex provides significant cost savings to high-density temperature measurement, with prices more competitive than hockey puck solutions for monitoring, the ability to integrate easily into supervisory and alarm/trip systems makes Maxiflex an unbeatable option. System additions are trivial and require minimal configuration to commission being measured in hours compared with days on conventional systems and thus passing on the savings to the end user.
Integration to local HMIs
HMIs can be used with Maxiflex to provide in-plant monitoring data to operational staff. Functionality of the system is varied and tailored to the application's needs. This is easily delivered by Maxiflex and a variety of local area network communications solutions including Ethernet to get the information back to supervisory systems. Local alarm and centralised alarm indication can be implemented with ease. Integration into Windows operating systems via OPC servers gives access to most scada packages on the market.
Some larger applications
* Boilers and boiler skin temperatures.
* Kilns and rotary kilns.
* Reactor/cracker temperature monitoring.
* Plastics moulding.
* Furnace monitoring.
* Temperature profiles and curing.
* Pump station motor winding and bearing temperature monitoring.
* Power station temperature monitoring.
Building upon the 35-plus years of experience in the field of alarm and events monitoring instrumentation for industry, Omniflex continues to provide solutions for many plant applications such as temperature monitoring.
For more information contact Ian Loudon, Omniflex, 031 207 7466, [email protected], www.omniflex.com
