Automation of the brewing process

August 2014 System Integration & Control Systems Design

Brewing beer requires dealing with naturally grown products that change from harvest to harvest. The brewer needs to react to these changes to produce a stable quality of beer that tastes the same every year. Following this moving target requires a lot of experience – it is the art of brewing.

Endress+Hauser can assist brewers to run their processes at a consistently high-quality on every batch. State of the art sensor technology supports the process through the increasing accuracy and repeatability of sensors which enable producers to brew their products in the most efficient manner. Optimised raw material use, energy conservation and maximum availability of the brewery are the objectives of automation.

The cleaning process is a basic requirement in the food & beverage industry. To save time and energy, sensors are developed to work in hygienic processes and adhere to the international guidelines such as FDA, 3-A and EHEDG.

Reliable measurement supplies the necessary data for the ideal process and supports suitable solutions for tracking and tracing the beer. Flowmetering supports constant recognition of extract transfer to help minimise losses.

Brew house – optimising the yield and quality of wort production

Mash tun level

Recommended for mash tun level measurement is the Deltapilot hydrostatic level sensor offering high reliability and temperature compensation. Remote electronics make access easy.

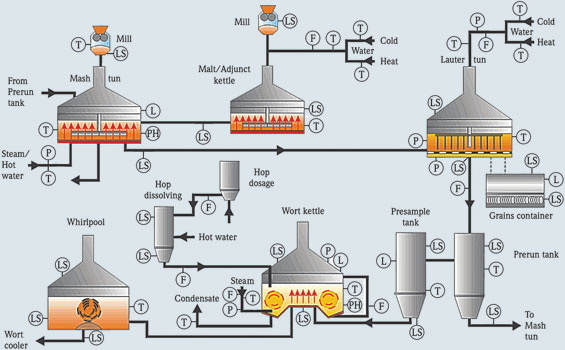

Brewhouse.
Brewhouse.

Beer loss reduction / boundary metering

The Promag H magnetic flowmeter is applied to measure the transfer of wort/beer between stages in the brewery. The goal is to identify any beer losses. For higher accuracy and also to see the yield, a Promass Coriolis mass flowmeter provides flow, totalised value and Plato° information.

Wort kettle pressure

Stable and faster boiling is achieved by applying pressure to the wort kettle. The Cerabar M pressure transmitter is ideal for this application – simple and reliable pressure control.

Boiling

In-line extract measurement with Liquiphant density ensures stable wort quality, along with optimised occupation time of the wort boil.

Steam supply

Accurate measurement of the steam supply for the mash tun and wort kettle is used to identify fouling and can have a direct impact on process time and energy cost. Prowirl 73 with steam computer gives you direct BTU readings.

Mash and foundation water

The pH must be monitored closely to achieve best quality in the mash tun. Non-glass IsFet pH sensor and retractable holders combined with Memosens technology bring highest reliability and accuracy.

Adjuncts, dextrose and enzymes

Liquefied adjuncts and dextrose must be added with high accuracy to optimise raw material usage. The Proline Promass provides the best temperature stability and accurate measurement available today. Combine this with the possibility to ensure performance between calibrations using the FieldCheck verification tool.

Lauter tun

Differential pressure across the lauter tun with ceramic membrane avoids damaged membrane due to abrasive grains. The Cerabar ceramic membrane pressure transmitters provide a reliable and highly accurate alternative. Lauter tun sparging water temperature control is critical to ensure the yield of the lauter process. Quicksens is the fastest temperature sensor on the market ensuring stable conditions.

Energy and extract loss reduction

To avoid wasting extract, lauter systems are monitored with Proline Promass F. Stopping the flush water at the exact right moment optimises flavour and saves energy during the boil.

Reliable level in silo

Avoid overfilling the spent grain silo by installing a radar Micropilot, protected from process splatter.

Filtration – production of a consistent product with minimal beer loss

Degassed water

Degassed water pH must be monitored closely. Non-glass IsFet pH sensors and retractable holders, combined with Memosens technology, ensure reliability and purity of water.

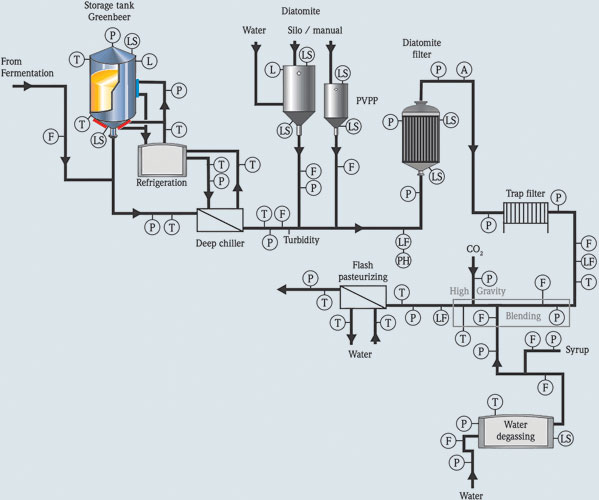

Filtration.
Filtration.

Dissolved oxygen measurement

Example applications are for trim cooler output, degasser, packaging release and in carbonation stage. The Endress+Hauser DO sensor provides reliable measurement with minimal maintenance.

High gravity blending

Minimise beer loss with combination of high performance metering – Promag on water and Promass 83F for combined flow including extract (Plato°) value.

Liquid storage or transfer tank

Point level detection in any liquid storage or transfer tank is done reliably without the need for calibration with the tuning fork point level switch Liquiphant.

Filter performance

Differential pressure is a common indicator for filter performance. Conventional DP transmitters or electronic DP systems provide needed reliability.

Packaging – to ensure a constant turnaround time and consumers have product in hand

Bright beer tank

The highest accuracy is required for continuous beer availability to the filler machine. Free space radar Micropilot provides this key information.

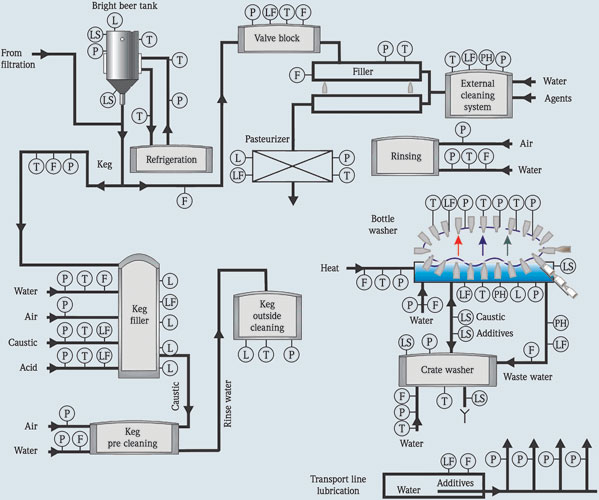

Packaging.
Packaging.

Bottle and keg washing

Sanitiser concentration must be monitored to ensure optimal cleaning efficiency. Endress+Hauser offers a full line of analytical sensors to monitor concentration.

Custody transfer

Documented traceable periodic verification of performance is required by industry legislation. Between calibrations of the Promag magnetic flowmeter, FieldCheck can be easily used as a verification tool to ensure performance and to generate documentation that adheres to legislation.

Fillerbowl level

To ensure complete fills and avoid beer loss the fillerbowl level must be controlled accurately. The Liquicap capacitance level sensor provides best accuracy level under fast moving conditions.

Product identification prior to packaging

Conductivity is monitored throughout the process. A key measurement is on the packaging release tank. A conductivity sensor is used to verify that the expected product is in the line. This can be combined with optical colour measurement for added safety.

Washdown

To ensure sterility and food safety during filling the whole area is often washed down with strong detergents/ sanitiser. All instruments are IP67 or better to ensure safety in washdown environment.

Wastewater treatment – reduced production losses = reduced cost of wastewater treatment

By implementing in-line quality control with checks and balances beer losses can be kept at a minimum. However, even in the best conditions, there will be wastewater generated. By applying simple measurement and controls the cost of water treatment can be minimised.

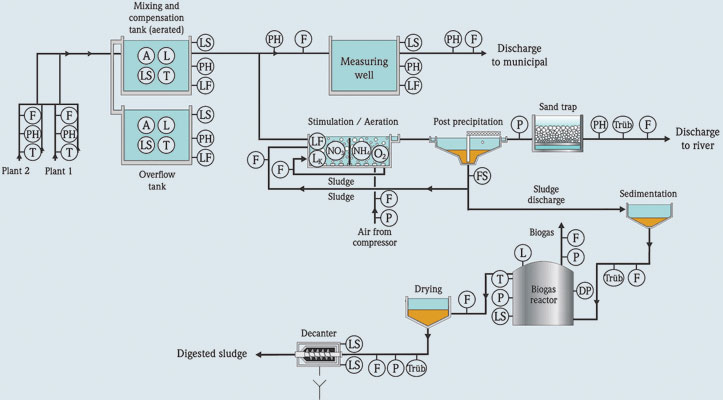

Wastewater treatment.
Wastewater treatment.

Step 1: Identify when and what is coming down the drain. A simple optical sensor mounted in the drainpipe can immediately identify a spill and the amount of solids (nutrients). Based on that data, implement a plan to reduce accidental spills and feed forward control for treatment plant.

Step 2: Depending on the size of the plant and the local arrangement with your municipal treatment plant you may only need to monitor and balance the pH value. pH sensors in conventional glass or non-glass combined with Memosens technology ensure maximum reliability and low maintenance.

Step 3: Measuring TOC and DO can optimise local treatment. An example is use of DO in aeration tanks to effectively reduce BOD levels while only running the blowers at most energy efficient levels. Blower air is easily monitored with thermal or vortex shedding flowmeters.

Step 4: Brewers need to monitor and keep records of outgoing volume and residual nutrients. Electromagnetic or ultrasonic flowmeters are commonly used in combination with pH, DO, chlorine and at times a TOC analyser, all captured in an electronic record such as the recorder Memograph M. Records can be managed in accordance with 21CFR part 11 and easily shared with authorities.

For more information contact Jan Swart, Endress+Hauser, +27 (0)11 262 8000, info@za.endress.com, www.za.endress.com
