As the next generation Very Large Array navigates towards its key science goals, SKF’s technology is playing a pivotal role in charting the stars. SKF is providing key components for the next-generation Very Large Array (ngVLA), a $2 billion telescope system that aims to peer deeper into the universe than ever before.

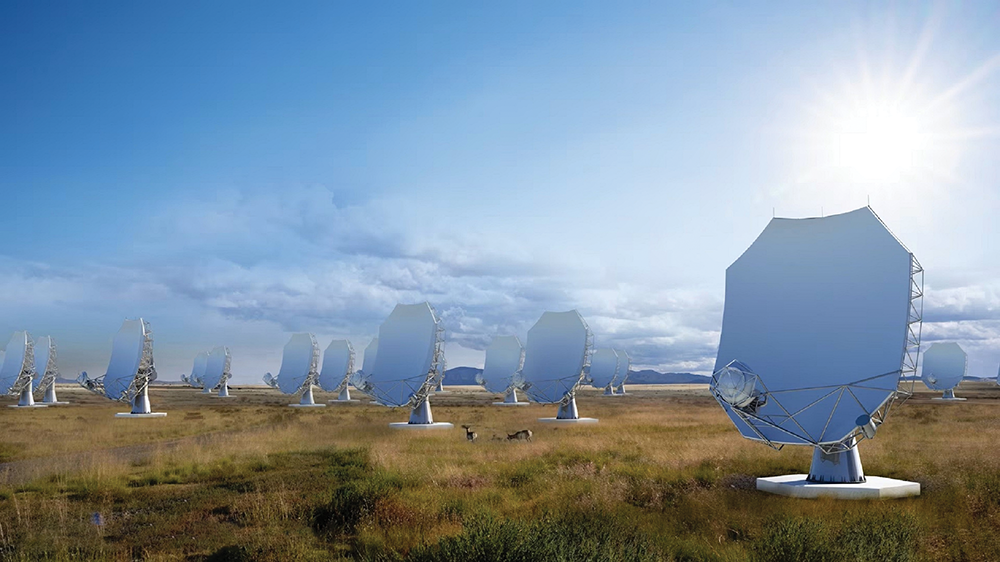

The US National Radio Astronomy Observatory (NRAO) is planning the ngVLA to replace the highly successful Very Large Array, a group of 28 radio telescopes that have been operating in the New Mexico desert for more than 40 years. The new, more advanced and ambitious project will include 244 antennas arranged in a series of spiral arms on the current VLA site. Another 30 dishes will extend these arms more than 1000 km across the Southwest, with additional dishes positioned across the continental United States, Hawaii and Puerto Rico to create a truly continental virtual telescope.
Image copyright: Sophia Dagnello, NRAO/AUI/NSF.

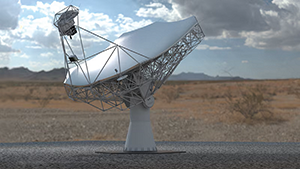

SKF technology will be integrated into the elevation control system of the prototype ngVLA antenna currently under construction by mtex antenna technology, a specialist in advanced radio telescope projects based in Germany.
SKF and mtex have worked together for more than two years, and defined a bearing solution that could meet the telescope’s requirements for high load capacity, low friction and extreme precision. In use, the system must be able to point the antenna with an accuracy of less than one thousandth of a degree, while continuously adjusting its position to compensate for the effects of wind and the Earth’s rotation.
The prototype elevation control system includes two 720 mm SKF spherical roller bearings manufactured to unusually high accuracy, to minimise thickness variations that could cause the antenna to wobble during motion. The bearings are mounted on tapered sleeves that allow the final clearance to be precisely adjusted during assembly to further reduce radial runout during operation. Finally, an SKF automatic lubrication system will minimise stick-slip, and reduce friction and wear during telescope operation.
The prototype antenna will be installed at a test site in New Mexico later this year before undergoing extensive testing over the next 18 months. If all goes according to plan, the NRAO will begin large-scale production of antennas for the ngVLA project in 2027, supporting a construction process that is expected to take a decade.
SKF is a world-leading provider of innovative solutions that help industries become more competitive and sustainable. By making products lighter, more efficient, longer lasting, and repairable, it helps its customers improve their rotating equipment performance and reduce their environmental impact. Its offering around the rotating shaft includes bearings, seals, lubrication management, condition monitoring, and services.
Smart features increase crane safety
Motion Control & Drives
The newly launched Konecranes S series hoist offers a large bouquet of smart features which not only increase lifting device safety but also deliver a higher level of operator protection.
Read more...Compact, powerful hexapod for high-precision applications
Motion Control & Drives
With the HEX150-125HL, Aerotech is launching the latest generation of its hexapod technology. The compact six-axis positioner combines precise movements with high load capacity and simple integration.
Read more...Hexagon Electrical services electric motor sector
Motion Control & Drives
Hexagon Electrical has expanded its manufacturing and service capabilities to meet the growing demand for customised, high-performance specialised electric motors in heavy engineering, and hazardous industrial and mining applications.
Read more...NORD modular drives for frequently changing motor speeds Bearing Man Group t/a BMG
Motion Control & Drives
BMG has made a substantial investment over the years to ensure assembly, stockholdings and technical support for the Nord range are in line with stringent international quality, safety and environmental standards.
Read more...SKF announces wave energy technology partnership SKF South Africa
Electrical Power & Protection
SKF and Carnegie are collaborating on the design and delivery of a power take-off system driven by the motion of a buoy that sits a few metres below the surface of the ocean and moves with the ocean’s waves.
Read more...Medium voltage drive for enhanced energy efficiency and process optimisation Schneider Electric South Africa
Motion Control & Drives
Schneider Electric South Africa has unveiled its cutting-edge Altivar Process ATV6100 medium voltage (MV) drive range, designed to enhance energy efficiency and operational reliability across various industries.
Read more...Powerful high-precision hexapod
Motion Control & Drives
With the HEX150-125HL, Aerotech is launching the latest generation of its hexapod technology. The compact six-axis positioner combines precise movements with high load capacity and simple integration.
Read more...Servicing the electric motor sector
Motion Control & Drives
Hexagon Electrical has expanded its manufacturing and service capabilities to meet the growing demand for customised, high-performance specialised electric motors in heavy engineering, and hazardous industrial and mining applications.
Read more...Control system for deep antenna Rockwell Automation
Motion Control & Drives
When a major university in South Korea set out to build a 21-metre deep space antenna, the researchers needed a control system that could track celestial objects with pinpoint accuracy, a level of precision they thought was out of reach. By partnering with Rockwell Automation, they discovered that the right technology and support could turn their vision into reality.

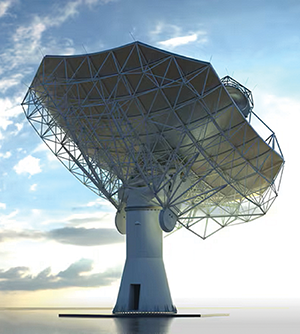

Image copyright: mtex antenna technology.
