SMC’s new electric actuator is an electric drive, that is controlled in the same way as a pneumatic cylinder and solenoid valve combination. Electric drives are designed for getting accurate speeds, and adjustable acceleration and deceleration. This, however, normally requires a PLC with complex logic involved to control the electric drives. With the new EQ electric actuator, the setup is simple and easy to control. It works exactly the same way as a pneumatic cylinder, with the ability to set it up to act as a single solenoid valve, double solenoid valve, or closed centred valve. You can set it up to suit your application.

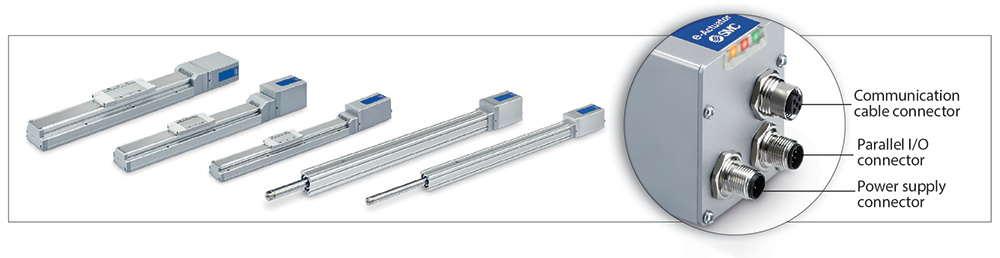

The controller is integrated into the motor housing, so there is no need for an external controller and actuator cables. This reduces wiring and saves space. However, even with all these changes, the mounting dimensions have been kept the same as SMC’s exciting electric drive product range. The motor cover is slightly bigger, to include the integrated controller. Metal M12 connectors are used for the power cable, IO-cable and communication cable, thus providing improved connector rigidity.
Setup is simple, and is completed in the following three steps:
Step 1: Set the operation mode. There are three operation modes: single solenoid mode, double solenoid mode, and closed centre mode.
Step 2: Set the stopping positions to the required extended and retracted distances.
Step 3: Set the speed, acceleration and deceleration.
With these three steps, setup is complete.
The electric actuator is an ideal addition to machines that do not have access to compressed air, or require accurate acceleration and deceleration with controlled speed. All this is achievable while controlling it like a solenoid valve.
Compressed air solutions for efficient pneumatic conveying
Pneumatics & Hydraulics
Moving goods through pipes from one point to another using air - pneumatic conveying - is an extremely efficient method of transporting a great variety of products, provided that the right system is used, and that it’s done correctly.
Read more...Easy to use energy management tool for compressed air Comtest
Pneumatics & Hydraulics
For the efficient management of plant operations, the critical considerations include product quality, safety, downtime, and energy use. A production plant in Germany has set a greenhouse gas emissions reduction goal of 25% by 2030, and turned to the Plant Energy manager to help deliver that target.
Read more...Compressed air drying and monitoring Artic Driers International
Pneumatics & Hydraulics
Artic Driers manufacturers the Sahara low dewpoint, heatless pressure swing air dryers with SANS 347 pressure code. These desiccant-rich pressure dryers comfortably obtain pressure dewpoints of -40°C.
Read more...How to clean compressed air effectively
Pneumatics & Hydraulics
ISO-Reliability Partners has taken another step in bringing to market highly effective solutions to combat contamination in all its forms. The locally designed and patented Air Wizard inline water trap is proudly manufactured in South Africa. It has been SABS tested for the separation of water, oily fluids, rust and solid particulates from pneumatic compressed air or gas lines.
Read more...Selection of two-port valves: an open and shut case SMC Corporation South Africa
Valves, Actuators & Pump Control
Little consideration is generally given to two-port valves because they are often perceived as simple devices that only open and close to control downstream fluid supply. Although this is mechanically true, choosing the optimal two-port valve for your application can make a big difference, saving space, weight and energy consumption.
Read more...Noise protection for pneumatic knockers Neu Matics SA
Pneumatics & Hydraulics
Noise in the workplace not only has serious health consequences, such as damage to the inner ear, headaches, dizziness, and even concentration and sleep disorders, but it also affects productivity. In order to keep operational noise levels as low as possible, singold gerätetechnik offers a range of solutions.
Read more...Versatile cylinder monitoring ifm - South Africa
Pneumatics & Hydraulics
This IO-Link cylinder sensor from ifm, with two configurable hardware outputs, will upgrade your machine in no time.
Read more...Hydraulic connectors with residual pressure
Pneumatics & Hydraulics
Hydraulic connections are vital in both outdoor and indoor industrial machinery. However, the hydraulics lines frequently require connecting and disconnecting for maintenance or changeover. The goal is to enable quick, easy swaps to enhance machine flexibility and productivity.
Read more...Selection of two-port valves: an open and shut case SMC Corporation South Africa
Valves, Actuators & Pump Control
Little consideration is generally given to two-port valves because they are often perceived as simple devices that only open and close to control downstream fluid supply. Although this is mechanically true, choosing the optimal two-port valve for your application can make a big difference, saving space, weight and energy consumption.
Read more...Ten considerations for optimum use of vacuum technology
Pneumatics & Hydraulics
Vacuum technology plays a huge role in the packaging of foodstuffs and other products. Here are ten considerations to help you use vacuum technology as effectively and efficiently as possible, so that you can optimise processes and cut operating costs.

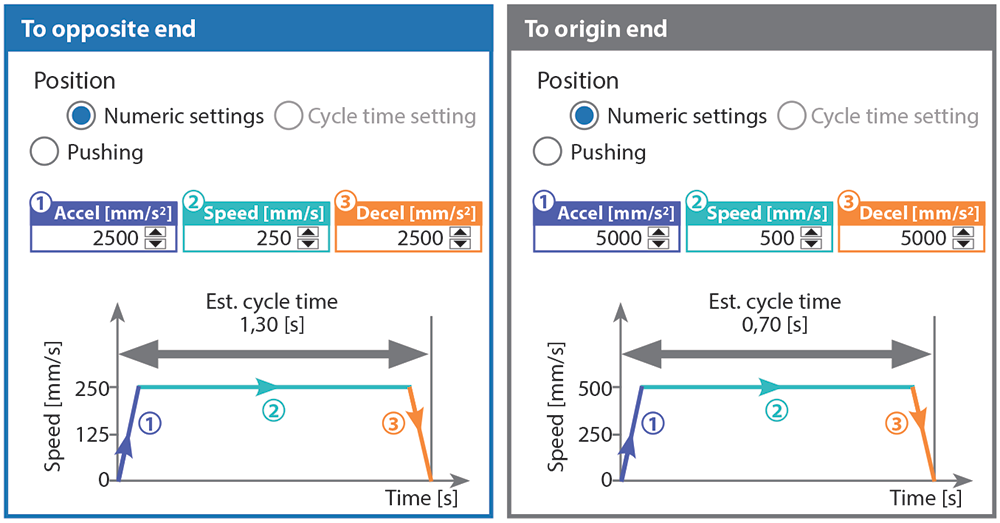

Parameter setting for EQ electric drive.
