Micro supercapacitors revolutionise batteries

January 2023 Electrical Power & Protection

Micro supercapacitors could revolutionise the way we use batteries by increasing their lifespan and enabling extremely fast charging. Manufacturers of everything from smartphones to electric cars are therefore investing heavily into research and development of these electronic components. Researchers at Chalmers University of Technology in Sweden have recently developed a method that represents a breakthrough for how such supercapacitors can be produced.

“When developing new technologies, it is easy to forget how important the manufacturing method is, so that they can actually be commercially produced and be impactful in society. Here we have developed methods that can really work in production,” explains Agin Vyas, doctoral researcher at the Department of Microtechnology and Nanoscience at Chalmers University of Technology, and lead author of the article.

Supercapacitors consist of two electrical conductors separated by an insulating layer. They can store electrical energy and have many positive properties compared to a normal battery, such as much more rapid charging, more efficient energy distribution, and a much greater lifespan without loss of performance with regards to the charge and discharge cycle. When a supercapacitor is combined with a battery in an electrically powered product, the battery life can be extended many times – up to four times for commercial electric vehicles. Whether for personal electronic devices or industrial technologies, the potential benefits for the end consumer are huge.

“It would be very convenient to be able to quickly charge, for example, an electric car or not have to change or charge batteries as often as we currently do in our smartphones. But it would also represent a great environmental benefit and be much more sustainable if batteries had a longer lifespan and did not need to be recycled in complicated processes,” he says.

Manufacturing a big challenge

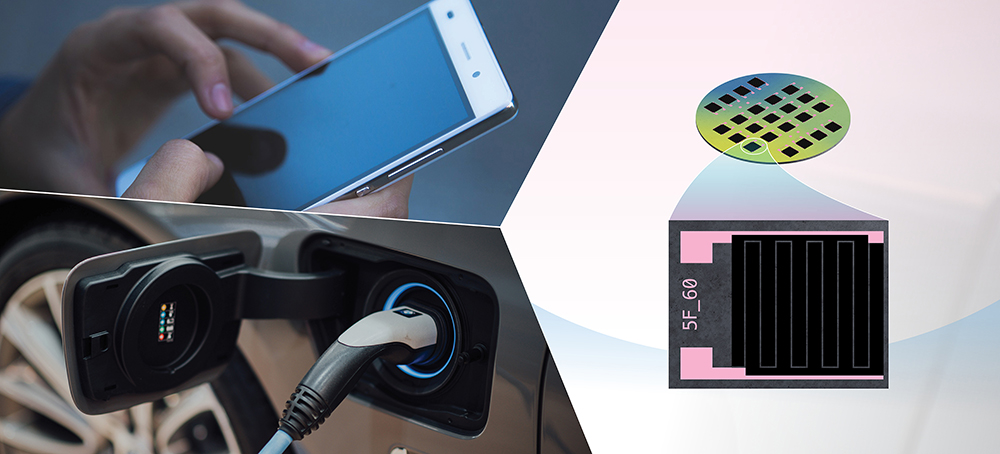

In practice, today’s supercapacitors are too large for many applications where they could be useful. They need to be about the same size as the battery they are connected to, which is an obstacle to integrating them into mobile phones or electric cars. Therefore a large part of today’s research and development of supercapacitors is about making them smaller – significantly so. Vyas and his colleagues have been working to develop micro supercapacitors. These are so small that they can fit on the system circuits which control various functions in mobile phones, computers, electric motors and almost all electronics we use today. This solution is also called ‘system-on-a-chip’.

One of the most important challenges is that the minimal units need to be manufactured in such a way that they become compatible with other components in a system circuit and can be easily tailored for different areas of use. The new paper demonstrates a manufacturing process in which micro supercapacitors are integrated with the most common way of manufacturing system circuits (known as CMOS).

“We used a method known as spin coating, a cornerstone technique in many manufacturing processes. This allows us to choose different electrode materials. We also use alkylamine chains in reduced graphene oxide, to show how that leads to a higher charging and storage capacity,” explains Vyas. “Our method is scalable and would result in reduced costs for the manufacturing process. It represents a great step forward in production technology and an important step towards the practical application of micro supercapacitors in both everyday electronics and industrial applications.”

A method has also been developed for producing micro supercapacitors of up to ten different materials in one unified manufacturing process, which means that properties can be easily tailored to suit several different end applications.
