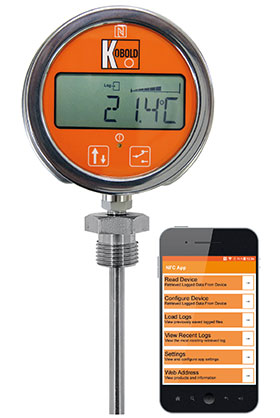

Instrotech now offers Kobold’s DTE series of digital temperature gauges. This series offers a wide range of industrial and analytical possibilities for applications where high accuracy and clear indication are required, and where alarm control and displayed messaging are either useful or a requirement, such as in controlled environments such as hospitals and scientific laboratories. In addition, the DTE also incorporates data logging, is accessible via NFC interface with mobile devices, and is USB PC configurable.
One of the key aspects of the DTE series is the mechanical case mounting options that follow the traditional bimetal, nitrogen actuated, and mercury (now prohibited) mechanical gauges.
The Universal Pt100 Class A and Class 1 thermocouple sensors offer not only accuracy and flexibility regarding sensor options, but in the event of the sensor being damaged in service, instead of replacing the entire instrument, only the sensor need be replaced. The instrument may also be reused for other applications where a different type of sensor specification is required.
Overview of DTE’s main features:
• 5000-point logger with USB interface.
• NFC interface for reading the log or synchronising the clock and starting a new logging operation.
• Android app for transmission of data via email.
• 7x32 character messages from user set message library.
• Dual alarm relays signal when maximum/minimum threshold limits are exceeded.
• Battery powered, configured for °C or °F.
The advanced features and versatility of the DTE offers new solutions for many applications, typically process and plant engineering; scientific, hospitals and care facilities; storage; building management systems; R&D; water industries; food and beverage; chemical industry; HVAC; steam heating; and process and biomass applications.
