Conveyor belt condition monitoring
November 2008
Maintenance, Test & Measurement, Calibration
VisIndex, the advanced conveyor condition monitoring system developed in South Africa by Westplex, has
successfully proved itself in the field to be an essential conveyor belt condition monitoring and maintenance tool.
Westplex’s VisIndex conveyor inspection system combines the power of a high resolution computer-based visual inspection system with the diagnostic ability of a computer-based inductive sensor system, to provide a comprehensive measurement of a conveyor belt, detecting both surface defects and buried steel cord faults. These measurements have been successfully and reliably made on belts of up to 17 km long, running at 6,5 metre/sec.
VisIndex has been proved to be capable of detection of:
* Cord defects consisting of partial or full cord breaks caused by mechanical damage and/or corrosion.
* Detection of changes in splices.
* Detection of new defects and changes in existing defects.
* Surface defects, resulting from damage to the belt surface or edge.

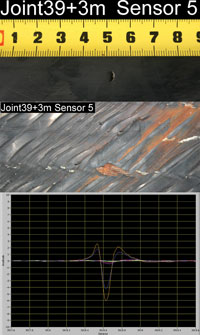

Surface cord damage – magnetic signature
Scanning principles
By use of a line-scan camera, used in conjunction with a high intensity LED line-light, the system acquires and records a single high-resolution image (2 mm/pixel or better) of the whole of the conveyor belt, while it is running at its normal speed.
An inductive sensor simultaneously senses changes in the steel cords that are buried in the belt, to detect splices, and defects in the cords. The pattern of distribution of splices, which is unique to each belt, is used to locate the position along the belt of any visual and inductive defects that are detected. The inductive sensor can monitor up to 16 sections across the belt so that the location across the belt of defect and splice magnetic signatures can be determined. The line-light and magnetic sensors were designed by Westplex, and are manufactured in South Africa.
Condition monitoring
The conveyor belt is initially characterised by the performance of a ‘reference’ inspection that measures the belt length, locates, measures and records the magnetic signature of splices and defects, and records a surface image of the entire belt.
Viewing and comparison tools that show coordinated surface images and magnetic signatures, can be used to examine reference data for initial visual and/or magnetic defects that may be problematic.
When subsequent inspections are made, the measurements are automatically synchronised with the reference data positions along the belt, so that comparisons can be made. Progressive changes in the belt condition are monitored by the comparison of inspection data with the reference data and/or earlier inspections. The viewing and comparison tools highlight changes in splices, defects and surface defects, and generate a condition report.
Condition reports
The VisIndex software package, developed by Westplex, provides a comprehensive set of automated measurement, comparison and report generation tools. VisIndex automatically generates a belt condition report that shows the current state of the belt, and highlights changes in the belt condition. The report can be printed or saved in HTML or pdf format.
