A municipal utility in eastern Germany operates a state-of-the-art wastewater treatment plant (WWTP) with sustainable sludge treatment. To this end, the company uses the biological dewatering method of sludge dewatering through reed beds (sewage sludge humification).
Measurement requirements
In this process, planted beds are periodically fed with sludge from the treatment plant. The basins, typically rooted with reed plants, enable effective decomposition of organic substances and optimal drainage of the sludge with minimal energy input. This method provides highly efficient dewatering and water recovery while significantly reducing disposal costs.
The customer channels the leachate from the reed bed system via collection pipes to a process water storage tank. From there, the collected water is returned to the WWTP process cycle in batches. To control the pumps and agitator of the water storage tank correctly, the operator requires reliable level measurement.
Previously, the customer monitored the level using an ultrasonic sensor from a competitor. Since the measurement point is outdoors, the measuring device was subject to weather fluctuations and wind influences, resulting in unreliable readings. The ultrasonic signal was partially deflected by the wind, leading to frequent false measurements and inefficient process workflows as pumps and agitators were unintentionally activated. The utility therefore sought an alternative level measurement solution that would work continuously without contact and unaffected by existing weather conditions.
The KROHNE solution

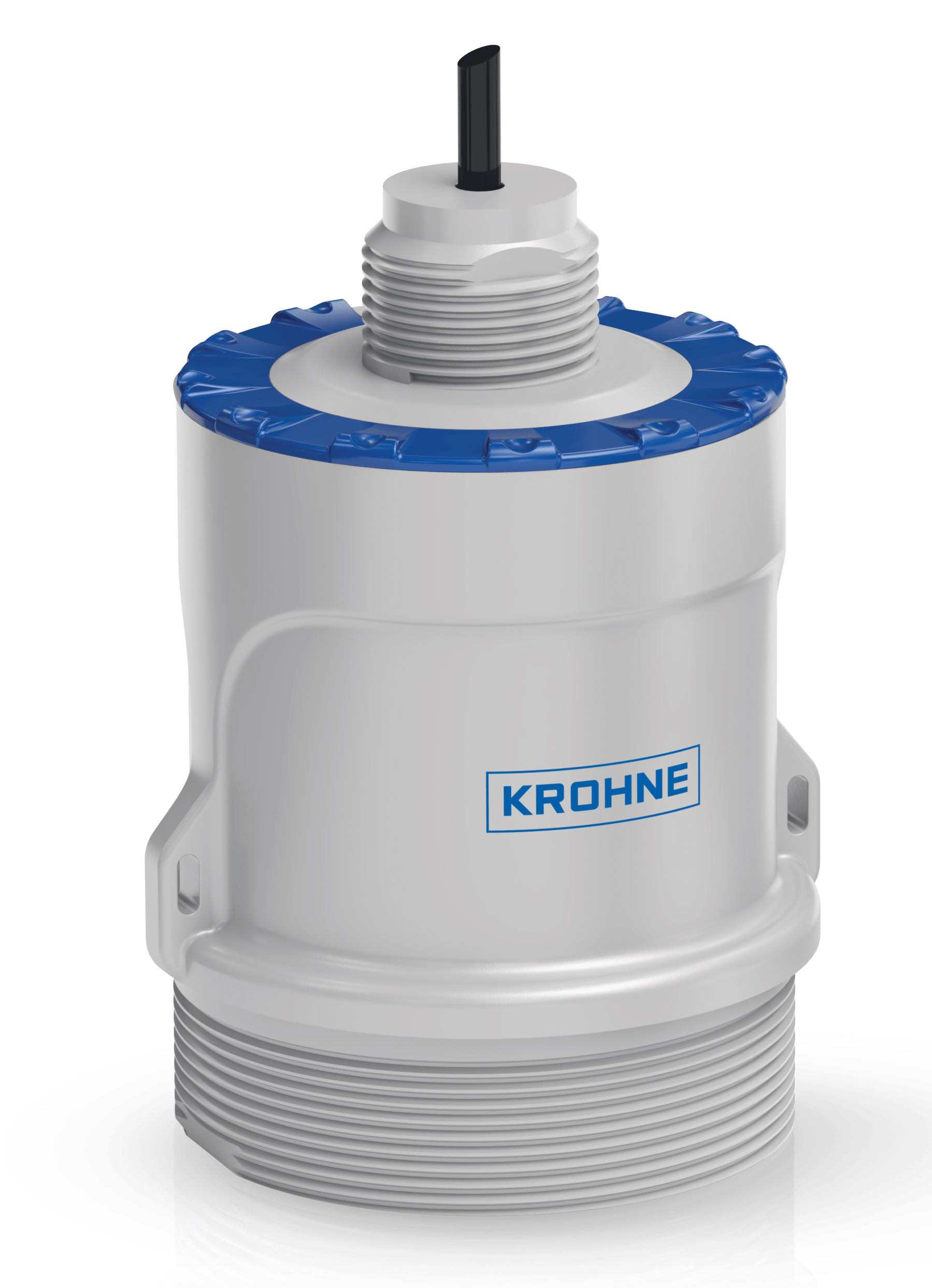

The utility replaced the ultrasonic level sensor with KROHNE’s OPTIWAVE 1540 non-contact radar. The 80 GHz radar level transmitter is designed for cost-effective level measurement in open basins and manholes in the water and wastewater industry.
The KROHNE device is entirely made of PVDF, making it highly durable. To protect the radar optimally against dirt, heavy rain, or even flooding, it has an IP68 protection rating. Thanks to its high measurement dynamics, the OPTIWAVE 1540 quickly responds to changing levels and is resistant to condensation and other environmental influences. Additionally, the device offers high accuracy with a measurement error of only ±2 mm.
The level transmitter was easily mounted at the edge of the basin. Installation was carried out with front-flush antenna using a suitable bracket that KROHNE supplied as part of the solution. Using the installation assistant within the OPTICHECK Level Mobile App, the operator was able to configure the 80 GHz radar quickly via smartphone and commission it through a secure Bluetooth connection. The customer utilised the preconfigured input mask of the mobile application, requiring only the entry of application-specific parameters such as the water tank height and measurement range, which were then transmitted to the device.
Customer benefits
With the OPTIWAVE 1540, the customer now achieves reliable monitoring of the stored water level. If the level exceeds a specified threshold, the pumps and agitators are activated. False activations due to faulty level measurements are now a thing of the past. The cost-effective 80 GHz radar offers a much more robust measuring principle compared to the previous sensor. It operates independently of weather conditions, providing long-term stable and accurate measurements even in the presence of wind or condensation.
The intuitive and user-friendly commissioning assistant significantly simplified and accelerated the device setup. No direct adjustments to the device were necessary, and prior knowledge was not required for commissioning. The mobile app guided the operator through the entire setup process in just a few steps. The OPTIWAVE 1540 was ready for operation after entering basic information. Thanks to the built-in OPTICHECK technology, the OPTIWAVE 1540 also provides easy access to device diagnostics and reporting functions. This enables the customer to perform onsite verification of the device, including report generation to check the device status. The operator can perform verification conveniently at the push of a button via the OPTICHECK Level Mobile App, either regularly or as needed.
Features and benefits of the OPTIWAVE 1540 include:
• Radar level transmitter for basic applications with liquid chemicals and open channel flow.
• Cost-effective, non-contact level measurement in chemical tanks at low pressure up to 5 bar and low temperature up to 80°C.
• 80 GHz radar lens antenna.
• Measuring range of 0…15 m.
