Magnetostrictive level transmitter

May 2024 Level Measurement & Control

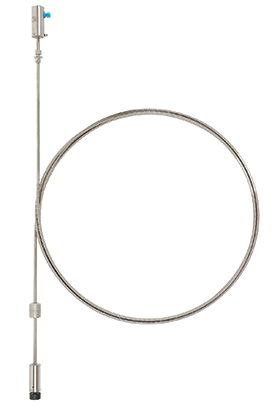

WIKA’s new model FLM-Tx-FLEX magnetostrictive level transmitter is used for high-accuracy, continuous level detection of liquids, including those with long insertion lengths.

The model FLM-Tx-FLEX is fitted with a flexible probe tube in the form of a stainless steel spiral armour. At the lower end of the sensor, there is a magnetic foot, which serves both to fix the stainless steel corrugated tube to the tank floor and as a ballast weight. Due to the flexible probe tube, the FLM-Tx-FLEX has an advantage in applications with low ceiling clearances. Due to the flexible design, transport is also easier than with a rigid probe. Interface measurements are also possible with the flexible version.

The transmitter is available in probe lengths between 1,5 and 22 metres. The accuracy is ±2 mm, and explosion-protected versions are also available.
