Infrared temperature sensor for industrial equipment
June 2018, Temperature Measurement

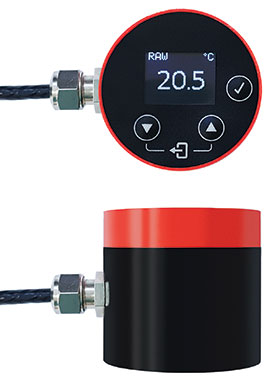

RS Components has launched a new RS Pro low-cost and high-performance infrared temperature sensor. The key features of the device include its extremely small size – 31 mm diameter by only 30 mm high – and side-entry cable, making it ideal for mounting in areas where space is limited. Other features include fast 125 ms response time, and built-in temperature display and controls.

The device is essentially a non-contact thermometer that is designed to measure temperature from a distance. Infrared thermometers are typically used for a wide variety of temperature monitoring functions, primarily in applications where contact sensors are unsuitable, such as when the target object is moving or inaccessible, or when a fast response time is required. Use of the sensor’s analog voltage output enables the setting of alarms, or connection to a data logger for quality checking.

Although the new unit is similar in operation to handheld temperature measurement guns, the RS Pro device is intended as a permanent measurement unit for fixed mounting via a bracket, for example to install on manufacturing machinery to measure product temperature, or to monitor the condition of machine parts. Key industrial application examples include: product temperature measurement in paper and cardboard manufacturing; food manufacturing; pharmaceuticals; thermoforming; curing and drying, as well as condition monitoring on mechanical or electrical equipment.

The unit features two simultaneous and configurable outputs: selectable voltage-output ranges from 0 to 5 V, 1 to 5 V or 0 to 10 V, providing a linear voltage output with measured temperature; and an open collector alarm output for temperature threshold and hysteresis. Other features of the sensor include temperature measurement from 0 to 1000°C; accuracy of 1,5% of reading; IP65 protection and operation over the ambient temperature range from 0 to 70°C.

Electrical characteristics include: operating supply voltage from 28 V down to 6 V DC, or 12 V DC if the output is set to 0 to 10 V, and a maximum current draw of 30 mA. The unit also meets industrial EMC standards, including EN61326-1 and EN61326-2-3 for use in electrical equipment for measurement, control and laboratory applications.

For more information contact RS Components SA, +27 (0)11 691 9300, sales.za@rs-components.com, www.rsonline.co.za


Credit(s)
Supplied By: RS Components SA
Tel: +27 11 691 9300
Fax:
Email: sales.za@rs-components.com
www: www.rsonline.co.za
